General info Edit

DVB-T FTA High Definition Digital Terriestrial Receiver.

This device does not have E-AC3 (as seen in bootlog):

Hash Key not Support MS10-DDT, No Dolby MS10-DDT license!!
Hash Key not Support DTS, No DTS decode license!!

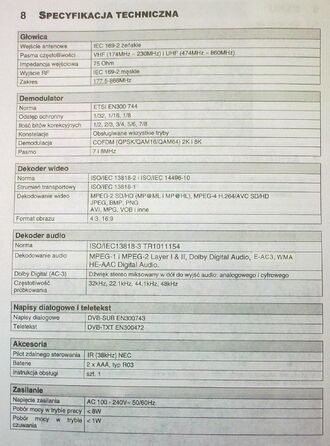

User manual Edit

20140918108
20140918109
20140918110


UART raw bootlogEdit

UART_115200

BIST0-OK
_snPDMDrv_PM_RtcGetCounter(CurrentCounter=0)
Hello U-Boot
U-Boot 1.1.6 (Jul 28 2011 - 04:07:45)
Board: MSTAR KRNOUS (CPU Speed 552 MHz) DRAM: 64 X 0 MBytes U-Boot is running at DRAM 0x87600000
BOARD CONFIGURATION#####################
DEFAULT ENBALE L2-Cache FPU(DISABLE)
BOARD CONFIGURATION#####################
Module: USB FAT FLASH SPI LOGO OSD ENV=SERIAL Flash is detected (0x0703, 0xEF, 0x40, 0x16) MDrv_SERFLASH_GetInfo() u32AccessWidth = 1 u32TotalSize = 4194304 u32SecNum = 64 u32SecSize = 65536 In: serial Out: serial Err: serial MSVC00B000100100208768TH0000000T [do_set_paneltype][584] is invoked!! MDrv_PNL_Init u32PnlRiuBaseAddr = BF200000 MDrv_PNL_Init u32PMRiuBaseAddr = BF000000 MDrv_HDMITx_Init Get IOMAP ID:300 Base:BF000000! MDrv_HDMITx_SetHDMITxMode: HDMI mode DAC eTiming =6 HDMITx eTiming =7 MDrv_HDMITx_Exhibit: Create Check Rx timer success! HDMITx eTiming =7 =>cmd: spi_rdc 0x80B2C000 0x20000 0x80 offset 0x20000, size 0x80 WARNING: it is better to set dram start addr aligned to 65536 !!! WARNING: it is better to set total length aligned to 65536 !!! Flash is detected (0x0703, 0xEF, 0x40, 0x16) initialization done! logo addr in spi: 0xBFC70000; logo size:0x9770 =>cmd: spi_rdc 0x80B2C000 0x70000 0x9770 offset 0x70000, size 0x9770 WARNING: it is better to set dram start addr aligned to 65536 !!! WARNING: it is better to set total length aligned to 65536 !!! u32ReadBuffVirAddr = A0000000, u32IntBuffVirAddr = A0100000, u32OutBuffVirAddr = A0730000 verJPD_SetStatus >>>>>>>>>>> w:720, h:576, p:720 GE_SetOnePixelMode Hit any key to stop autoboot: 0 WDT Initialize ... Start 75F2000 End 76A2000 UnProtect MIU block 0 : 0x75F2000 0x76A2000 offset 0x8001C, size 0x27BBF0 WARNING: it is better to set flash start addr aligned to 65536 !!! WARNING: it is better to set total length aligned to 65536 !!! in=0x80B00000, in_size=0x27BBF0, out= 0x80000180, alloc_buf = 0x81000000 in=0x80B00000, in_size=0x27BBF0, out= 0x80000180, alloc_buf = 0x81000000 in_size=2604016 out_size=7332340 unpack_size=0
LZMA Decompression...CRC_result DFE34307 CRC_value DFE34307 CRC check success !! ok
Starting application at 0x80000224 ...
[cyg_net_init] Init: mbinit(0x00000000) [cyg_net_init] Init: cyg_net_init_devs(0x00000000) Init device 'pcnet_eth0' [cyg_net_init] Init: loopattach(0x00000000) [cyg_net_init] Init: ifinit(0x00000000) [cyg_net_init] Init: domaininit(0x00000000) [cyg_net_init] Init: cyg_net_add_domain(0x806aaff8) New domain internet at 0x00000000 [cyg_net_init] Init: cyg_net_add_domain(0x806aabc0) New domain route at 0x00000000 [cyg_net_init] Init: call_route_init(0x00000000) [cyg_net_init] Done
Customer_info:Before ******
0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,
abcdef => 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, ABCDEF => 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,
Customer_info ******
0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx, 0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,0xbx,Hardware Initialize... MDrv_MIOMap_Init MsOS_Init _MApi_SystemInit_CreateMemoryPool upoolSize = 320000 and u32Addr = 923A18 mdrv_gpio_init MIU Initialize... Get IOMap u32NonPmBase = 0xbf200000 Get IOMap u32PmBase = 0xbf000000 Disable MIU1 WDT_Init MDrv_WDT_IsReset = 0 [MAPI_MEMINFO] DVBC System Memory Usage [MAPI_MEMINFO] ============================ START END SIZE [MAPI_MEMINFO] POOL_START 0x00000000 0x016ce800 0x016ce800 [MAPI_MEMINFO] Cached Pool Start 0x00923a18 0x00c43a18 0x00320000 [MAPI_MEMINFO] NONCACHED_POOL_START 0x00c43a18 0x016ce800 0x00a8ade8 [MAPI_MEMINFO] [MAPI_MEMINFO] Memory Layout: [MAPI_MEMINFO] ============================ START END SIZE [MAPI_MEMINFO] XC_MEM_START 0x03d00000 0x04000000 0x00300000 [MAPI_MEMINFO] MAD_MEM_START 0x03a00000 0x03d00000 0x00300000 [MAPI_MEMINFO] MVD_MEM_START 0x01d00000 0x03a00000 0x01d00000 [MAPI_MEMINFO] VE_MEM_START 0x01b60000 0x01d00000 0x001a0000 [MAPI_MEMINFO] GOP_DMAMEM_START 0x01b5f000 0x01b60000 0x00001000 [MAPI_MEMINFO] TSP_VQ_START 0x01b5e000 0x01b5f000 0x00001000 [MAPI_MEMINFO] PM51_MEM_ADR 0x01b5dc00 0x01b5e000 0x00000400 [MAPI_MEMINFO] PM51_VAR_MEM_ADR 0x01b5d800 0x01b5dc00 0x00000400 [MAPI_MEMINFO] GOP_GWINMEM_START 0x016ce800 0x01b59800 0x0048b000
[MAPI_MEMINFO] pFirstAvailableMemory 0x80923a18
Hello Hummingbird!! _appDemo_Task.iId = 1985216513 ---------- Hello World---------- ------- Welcome to Demo AP------
>> [_SysInit_InitAPI][1805]SPI Flash Driver Init !! Flash is detected (0x0703, 0xEF, 0x40, 0x16) [HAL_AUDIO_AllocateVars], init Shared
>> HAL_MAD_SetMemInfo[DSP_DEC] = 0x03b00000
HAL_MAD2_SetMemInfo[DSP_SE] = 0x03a00000
[HAL_AUDSP_DspLoadCode], pau_info->cm_len == 0
ADEC Done and do default setting 4
Hash Key not Support MS10-DDT, No Dolby MS10-DDT license!! Hash Key not Support DTS, No DTS decode license!! MDrv_SERFLASH_GetInfo() u32AccessWidth = 1 u32TotalSize = 4194304 u32SecNum = 64 u32SecSize = 65536 [MApp_ShareEnv_LoadEnv][226]Memory Allocation for Env structure : Addr = A16BE7F0 , Size = 00010000 [_crc32][127]CRC check Value = 54143F8F Check Boot Logo OK!! logo_cmd [boot_logo 0 0 1 1] Get Boot Panel Type!! pEnvStr = set_paneltype 12 ptr = set_paneltype 12 ptr+PANEL_CMD_LENGTH = 12 result = 1 result = 12 g_PNL_TypeSel = 12 eTiming =6 [MSAPI_XC Version]�[1;32m 00441988
�[mMDrv_PNL_Init u32PnlRiuBaseAddr = bf200000
MDrv_PNL_Init u32PMRiuBaseAddr = bf000000 [XC,Version]�[0;36m 00409386
�[mMDrv_HDMITx_Init
Get IOMAP ID:300 Base:bf000000! MDrv_HDMITx_SetHDMITxMode: HDMI mode DAC eTiming =6 MDrv_HDMITx_SetHDMITxMode: HDMI mode HDMITx eTiming =7 MDrv_HDMITx_Exhibit: Create Check Rx timer success! Wait V Sync!! GE_SetOnePixelMode driver GE init ok [_SysInit_GEGOP][1223] [_SysInit_GEGOP][1232] [_SysInit_GEGOP][1258]driver GOP0 init ok [_SysInit_GEGOP][1258]driver GOP1 init ok [_SysInit_GEGOP][1258]driver GOP2 init ok Path2 Set to Mixer GE_Init and VE setting done BASEADDRESS_STRING_DATABASE_IN_FLASH = 00370000 BASEADDRESS_BITMAP_DATABASE_IN_FLASH = 00370000 BASEADDRESS_GENSETTING_IN_FLASH = 00370000 BASEADDRESS_CURRENT_DTV_ORDER_IN_FLASH = 00380000 BASEADDRESS_CH_DATABASE_IN_FLASH = 00390000 BASEADDRESS_MOSAIC_IN_FLASH = 003D0000 BASEADDRESS_TFCA_MAIL_IN_FLASH = 003E0000 NUMBER_OF_CURRENT_DTV_PROGRAM = 00001000 USB init MDrv_Usb_Init.. Usb init The base address is 0xA16AE000 Base addr is 0xA16AE000 Top addr is 0xA16BDFFF Pages per pool is 16 Bit map base addr is 0xa16ad7d0 usb_init start usb_hcd_cpe_ehci_probe ehci: 80c3f870 hcd: 80c3f8a4 The allocated addr is 0xa16ae000, bit_map[0] is 0xFFFFFFFE qh: a16ae000, qh->qh_dma: 16ae000 The allocated addr is 0xa16af000, bit_map[0] is 0xFFFFFFFC The allocated addr is 0xa16b0000, bit_map[0] is 0xFFFFFFF8 qh: 16ae000 usb_new_device usb_set_address before usb_set_address after The allocated addr is 0xa16b1000, bit_map[0] is 0xFFFFFFF0 InitUSBIntr enter Usb start.. MDrv_Usb_Done ...........UsbTask.. ...................................... >>> Allocate Addr = A16AA6C0 , FwPhyAddr = 016AA700
Start TSP_Init ************************
<FWTSP> : [PATCH][HAL_TSP_SetCAPath] === Currently disable CA PAth ===
>> FwVersion:001B210E , Date:20100918
End TSP_Init *************************
[PATCH][HAL_TSP_SetCAPath] === Currently disable CA PAth === [MApi_SI_System_Startup] OK !! [AP_NC_Alloc] Size = 1010 [AP_C_Alloc] Size = 6be00 [AP_NC_Alloc] Size = c8cf MApi_DigiTuner_Init mutex id 1985216534 MDrv_IIC_Init PORT 1 MDrv_IIC_InitPort0: OK MApi_VectorFont_Init total size=3276800, free size=2811712, large size=2811668 alloc mem 0x330c alloc mem 0x1f14 SysInit done ................................................. into _appMain_Task [MApp_CheckFlash][1231] s8SN0 = 1 [MApp_CheckFlash][1252] MApi_DB_CM_LoadDTVProgramDatabaseFromFlash -- u16Index[79] [4096] [MApp_CheckFlash][1278] MApi_DB_CM_InitDTVDataManager: m_eCurrentServiceType = 1 MApi_DB_CM_InitDTVDataManager: m_wCurrentOrderOfTV = 23 MApi_DB_CM_InitDTVDataManager: m_wCurrentOrderOfRadio = 0 MApi_DB_CM_InitDTVDataManager: m_wCurrentOrderOfMosaic = 0 MApi_DB_CM_InitDTVDataManager: m_wCurrentOrderOfNvod_Ref = 0 MApi_DB_CM_InitDTVDataManager: m_wCurrentOrderOfNvod_TimeShifted = 0 ------ pParam->u32Frequency [690000] pParam->TerParam.eBandWidth[2]------
MXL5007T SetTuner
MXL5007 SetTuner dwFreq = 690000000, ucBw = 8
MxL_RFSynth_Lock_Status = 0xc RFSynth bLock = 1 REFSynth bLock = 1 Tuner Success into appMain_AddApp [ZUI] init: sz_msg_q=6216 fix appTV_GetInfo before using SCART ON, CVBS ON, RGB ON [msCHIP_DAC_SetOutputSource][79] input bitmap: 0x00000011 CVBS on SVIDEO off, YPBPR off, RGB on SCART on problem happen App_GetTVFormat:[0]
MDrv_HDMITx_SetAVMUTE tvvideo_SetDCOutputTiming : 0, 1 Check the Source type 8 [tvvideo_SetDCOutputTiming][470]: ## Change Resolution ##, eCompType = 8 [msAPI_XC_ReMapComponentType][245]: msAPI_XC eTiming = 11 DAC eTiming =8 MDrv_HDMITx_SetHDMITxMode: HDMI mode HDMITx eTiming =12 into appMain_AddApp into appMain_AddApp into appMain_AddApp [+]MApi_EpgDB_Init [AP_NC_Alloc] Size = 50 [AP_NC_Alloc] Size = 5 [AP_NC_Alloc] Size = 190 [AP_NC_Alloc] Size = 3e8 [AP_NC_Alloc] Size = b40 [AP_NC_Alloc] Size = 9d80 [AP_NC_Alloc] Size = 14000 [AP_NC_Alloc] Size = 1d4c0 [AP_NC_Alloc] Size = 1f5f40 [AP_NC_Alloc] Size = c8 [AP_NC_Alloc] Size = 2000 [AP_NC_Alloc] Size = 2000 [AP_NC_Alloc] Size = 580000 [EPGDB][000687] ========================================================================= [EPGDB][000688] _pu16SrvMappingTable: (Start, End, Length)= (0xa14c4000, 0xa14c4050, 0x00000050) [EPGDB][000689] _pu8EitBufMask: (Start, End, Length)= (0xa14c3fe0, 0xa14c3fe5, 0x00000005) [EPGDB][000690] _pMapBufIdxTable: (Start, End, Length)= (0xa14c3e40, 0xa14c3fd0, 0x00000190) [EPGDB][000691] _pu8EpgDbEvtMask (Start, End, Length)= (0xa14c3a40, 0xa14c3e28, 0x000003e8) [EPGDB][000692] _pu8EpgDbScheHdrList (Start, End, Length)= (0xa14c2ef0, 0xa14c3a30, 0x00000b40) [EPGDB][000693] _pu8EpgDbSrvEvtList (Start, End, Length)= (0xa14b9160, 0xa14c2ee0, 0x00009d80) [EPGDB][000694] _pu8EpgDbSrvSecList (Start, End, Length)= (0xa14a5150, 0xa14b9150, 0x00014000) [EPGDB][000695] _pu8EpgDbEvtHdrList (Start, End, Length)= (0xa1487c80, 0xa14a5140, 0x0001d4c0) [EPGDB][000696] _pu8EpgDbEvtNameList (Start, End, Length)= (0xa1291d30, 0xa1487c70, 0x001f5f40) [EPGDB][000697] _pu8EpgDbPfHdrList (Start, End, Length)= (0xa1291c50, 0xa1291d18, 0x000000c8) [EPGDB][000698] _pu8EpgDbPfPresent (Start, End, Length)= (0xa128fc40, 0xa1291c40, 0x00002000) [EPGDB][000699] _pu8EpgDbPfFollow (Start, End, Length)= (0xa128dc30, 0xa128fc30, 0x00002000) [EPGDB][000703] _pu8EpgDbScheExtStrBuf (Start, End, Length)= (0xa0d0dc20, 0xa128dc20, 0x00580000) [EPGDB][000705] EPG database allocate 0x007b6355 bytes [EPGDB][000711] ========================================================================= [-]MApi_EpgDB_Init MApp_ZUI_ACT_StartupOSD TV_PROG [MApp_ZUI_ACT_PrepareOSDPage][436]MS_COMPONENT_OUTPUT_TYPE : 8 fix _MApp_ZUI_SetupDisplayList before using SD: 720 x 576, HD: 960 x 1080 leave MApp_ZUI_API_InitCanvasGDI -> MApp_ZUI_API_GetFontMVF in 131 Set PAL SD Gwin = 4 disp[1]'s FBID = 2 HD Gwin = 0 [MApp_ZUI_ACT_AppShowTVBanner][4442] [_ProcessFromWhere][1710][_ProcessFromWhere][1717] [2453] _Estimate_Record_A_Play_B 0 _Zapper_Disable_AV: Enter at 3256. alloc mem 0x2000 alloc mem 0x1000 alloc mem 0x40000 alloc mem 0x2400 Set PCR FLT=12 PID = 66
Video PID=0x66,Flt=0xff Hash Key not Support MS10-DDT, No Dolby MS10-DDT license!! Hash Key not Support DTS, No DTS decode license!! bSignalStatusChange 0 _Zapper_Disable_AV: Enter at 7350. Set PCR FLT=12 PID = 1FFF


UART enter into bootloaderEdit

UART_115200

BIST0-OK
_snPDMDrv_PM_RtcGetCounter(CurrentCounter=0)
Hello U-Boot
U-Boot 1.1.6 (Jul 28 2011 - 04:07:45)
Board: MSTAR KRNOUS (CPU Speed 552 MHz) DRAM: 64 X 0 MBytes U-Boot is running at DRAM 0x87600000
BOARD CONFIGURATION#####################
DEFAULT ENBALE L2-Cache FPU(DISABLE)
BOARD CONFIGURATION#####################
Module: USB FAT FLASH SPI LOGO OSD ENV=SERIAL Flash is detected (0x0703, 0xEF, 0x40, 0x16) MDrv_SERFLASH_GetInfo() u32AccessWidth = 1 u32TotalSize = 4194304 u32SecNum = 64 u32SecSize = 65536 In: serial Out: serial Err: serial MSVC00B000100100208768TH0000000T [do_set_paneltype][584] is invoked!! MDrv_PNL_Init u32PnlRiuBaseAddr = BF200000 MDrv_PNL_Init u32PMRiuBaseAddr = BF000000 MDrv_HDMITx_Init Get IOMAP ID:300 Base:BF000000! MDrv_HDMITx_SetHDMITxMode: HDMI mode DAC eTiming =6 HDMITx eTiming =7 MDrv_HDMITx_Exhibit: Create Check Rx timer success! HDMITx eTiming =7 =>cmd: spi_rdc 0x80B2C000 0x20000 0x80 offset 0x20000, size 0x80 WARNING: it is better to set dram start addr aligned to 65536 !!! WARNING: it is better to set total length aligned to 65536 !!! Flash is detected (0x0703, 0xEF, 0x40, 0x16) initialization done! logo addr in spi: 0xBFC70000; logo size:0x9770 =>cmd: spi_rdc 0x80B2C000 0x70000 0x9770 offset 0x70000, size 0x9770 WARNING: it is better to set dram start addr aligned to 65536 !!! WARNING: it is better to set total length aligned to 65536 !!! u32ReadBuffVirAddr = A0000000, u32IntBuffVirAddr = A0100000, u32OutBuffVirAddr = A0730000 verJPD_SetStatus >>>>>>>>>>> w:720, h:576, p:720 GE_SetOnePixelMode Hit any key to stop autoboot: 0 0
<< MStar >>#  ?
? - alias for 'help'
do Lzma for compress image
base - print or set address offset
bdinfo - print Board Info structure
boot_logo - Logo display
bootm - boot application image from memory
cmp - memory compare
coninfo - print console devices and information
cp - memory copy
cpmsbin - Copy ms bin file (Chakra) from nand to dram
crc32 - checksum calculation
cusid check the image is release by the valid guys
dcache - enable or disable data cache
dmx_init - initialize the demux setting
draw_pixel - draw a pixel with color
draw_string - draw string with color
draw_rect - draw rect with color
draw_string - draw string with color
du - Disable UART
env2flash - read environment parameter file and restore it to flash
envbin - read out environment parameter and store it to usb disk
erase - erase FLASH memory
fatinfo - print information about filesystem
fatload - load binary file from a dos filesystem
fatls - list files in a directory (default /)
fatwrite - write binary file to a dos filesystem
flinfo - print FLASH memory information
go - start application at address 'addr'
help - print online help
loop - infinite loop on address range
md - memory display
mm - memory modify (auto-incrementing)
mstar - update kernal & root file system automatically by script file
mtest - simple RAM test
mw - memory write (fill)
ustar - update kernal & root file system automatically by script file
nm - memory modify (constant address)
oad_get_size - Get the file size from OAD download
osd_create - create osd layer
osd_destroy - destroy osd layer
ostar - update kernal & root file system automatically by script file
pnlinfo - set panel info and save to nand flahs
printenv- print environment variables
protect - enable or disable FLASH write protection
reset - Perform RESET of the CPU
run - run commands in an environment variable
saveenv - save environment variables to persistent storage
set_paneltype [type] - Set Mboot panel type and store the type value in env
setenv - set environment variables
spi_dma - SPI copy data from flash to DRAM by PIU DMA
spi_ea - SPI erase all
spi_eb - SPI erase block
spi_gfo - SPI get flash info
spi_gr - SPI get Chip Rev
spi_id - SPI read ID
spi_in - SPI initialization
spi_r - SPI read commands
spi_rb - SPI read buffer
spi_rdc - SPI read code from SPI flash to DRAM
spi_rs - SPI read status
spi_w - SPI write commands
spi_wb - SPI write buffer
spi_wp - SPI write protect
spi_wrc - SPI write code from DRAM to SPI flash
sspi - SPI utility commands
sysinfo - set system info and save to nand flahs
tuner_demodtype - set frontend type
tuner_init - frondend initialization
tuner_tune - tune RF to check lock or not
usb - USB sub-system
ustar - update kernal & root file system automatically by script file
usbboot - boot from USB device
ustar - update kernal & root file system automatically by script file
version - print monitor version
<< MStar >>#

Additional images Edit

IMG 5517 crop

ltc hd-301 front

IMG 5527 crop

ltc hd-301 front board another shot

IMG 5515 crop

ltc hd-301 board back (with uart connection pads)

Ltc-301-remote

ltc hd-301 remote controller (NEC 38kHz IR standard)

IMG 5512

ltc hd-301 cover front

IMG 5513

ltc hd-301 cover back



DownloadsEdit

MStar MSD7818 - LTC HD-301 schematics (DH1687 board)
